Blind Spot detection system for commercial vehicle

blind spot detection system for commercial vehicle

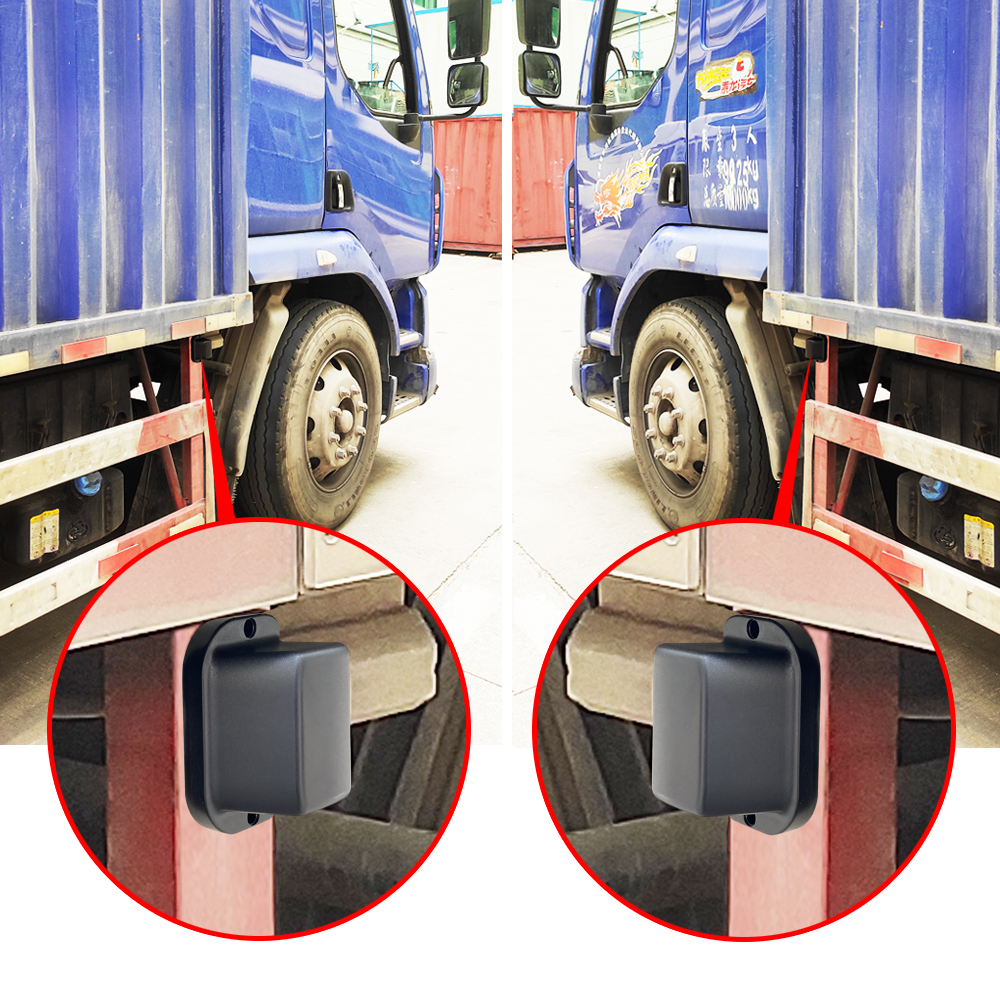

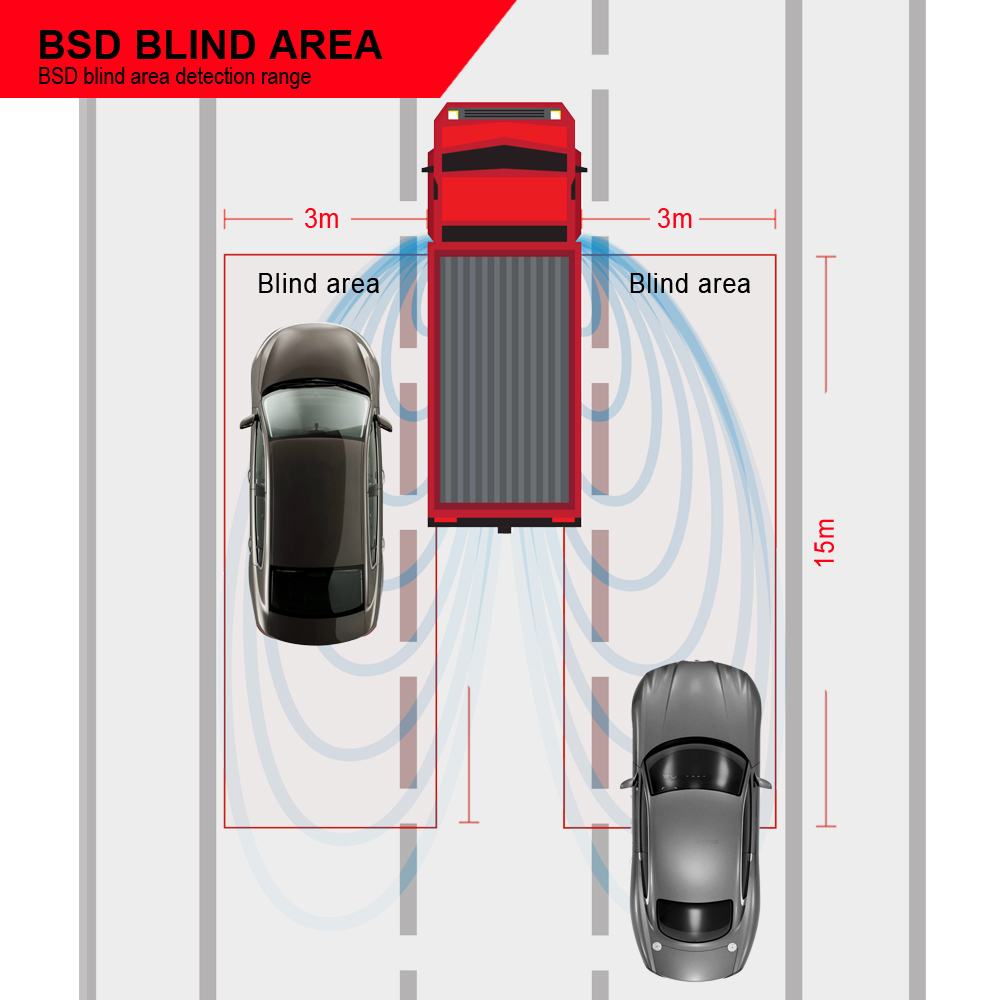

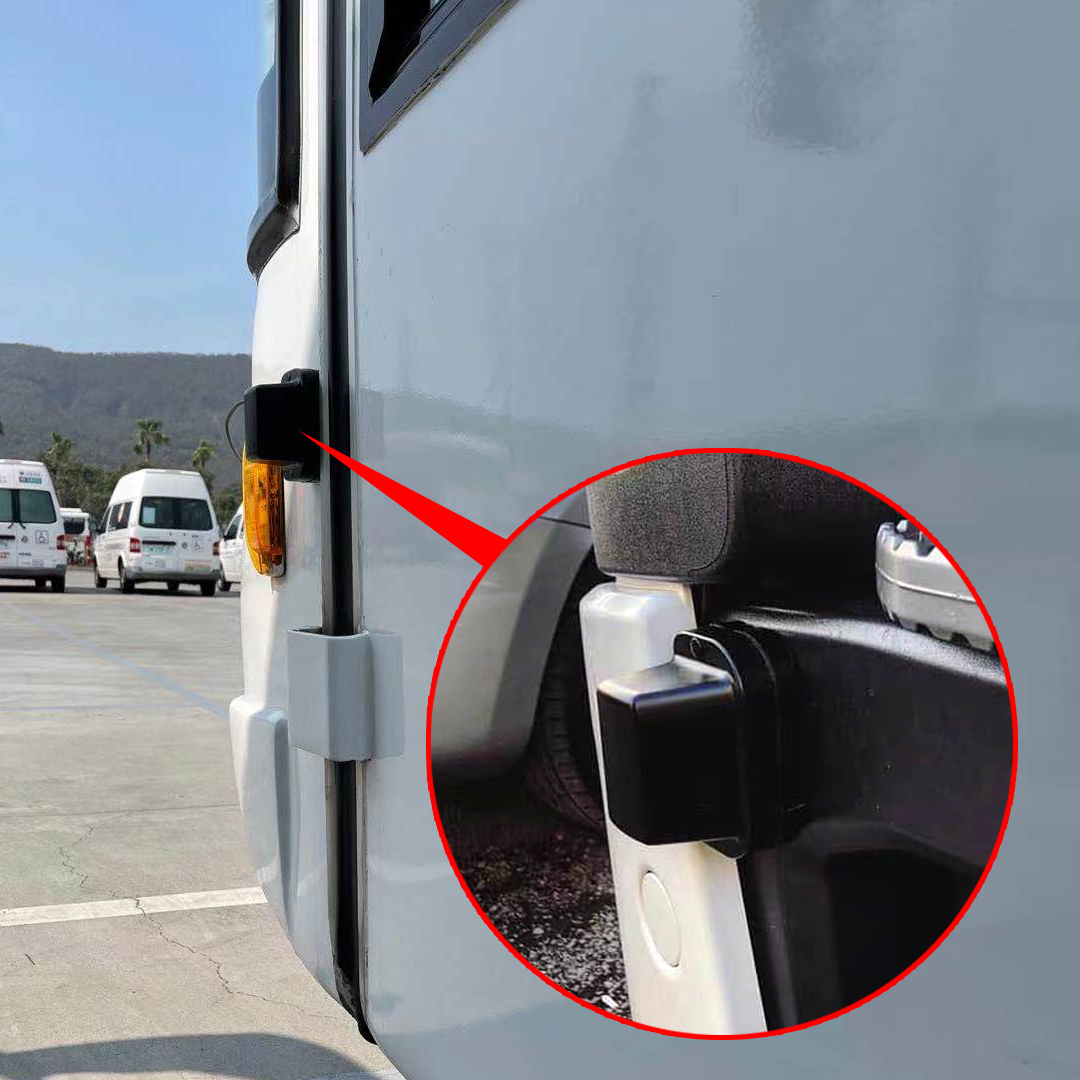

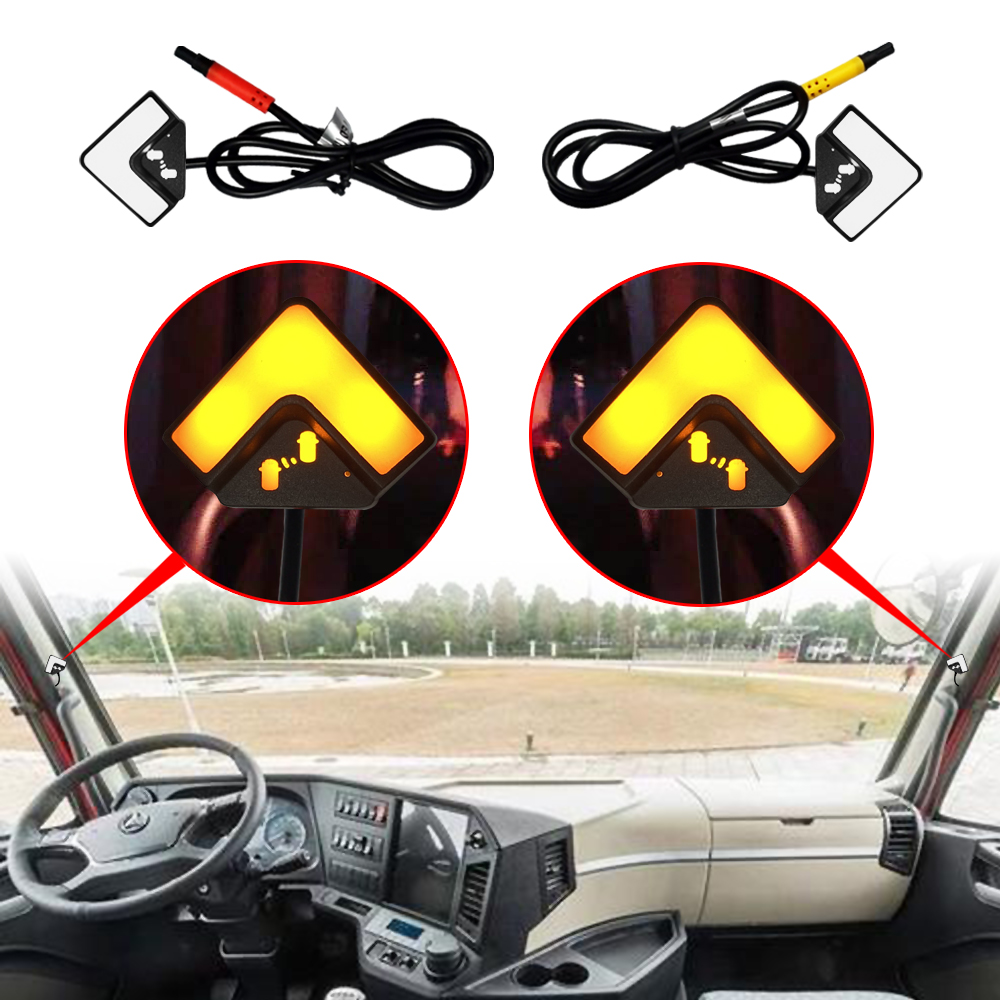

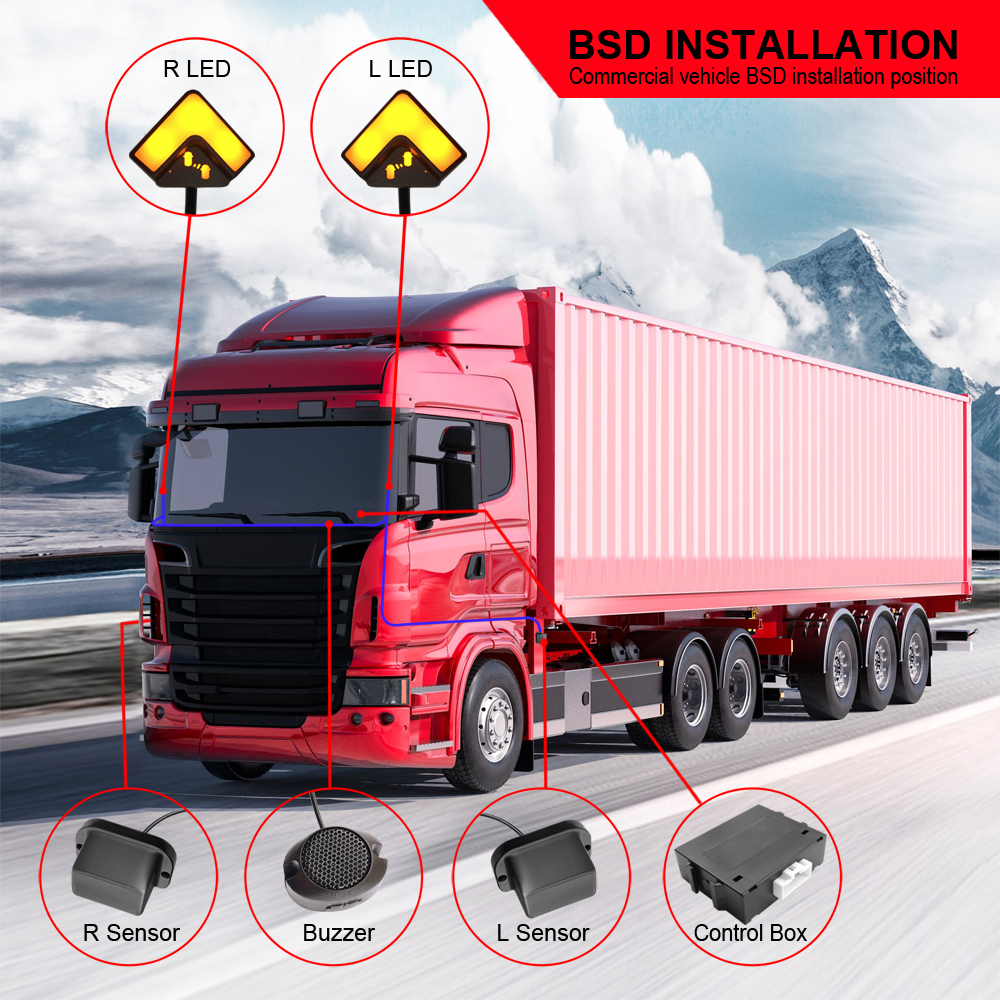

The BSD function , this blind spot detection system  which through installing 2pcs of special 24ghz blind spot radar  on the vehicle side, when the vehicle is moving, if any moving object closer to blind area( 3 meter from right and left side ,15 meters from behind）,the object will be detected by system sensor ,For example, when turn left ,the left 24ghz Blind spot sensor (24ghz blind spot radar)wild detect the comming car,    the  left LED indicator will turn on and keep shining for reminding driver; when turn rigth  ,the right 24ghz Blind spot sensor (24ghz blind spot radar)  wild detect the comming car,    the  right  LED indicator will turn on and keep shining for reminding driver,  in this condition, if the driver wants to change the lane, the buzzer will beep sounds for reminder.

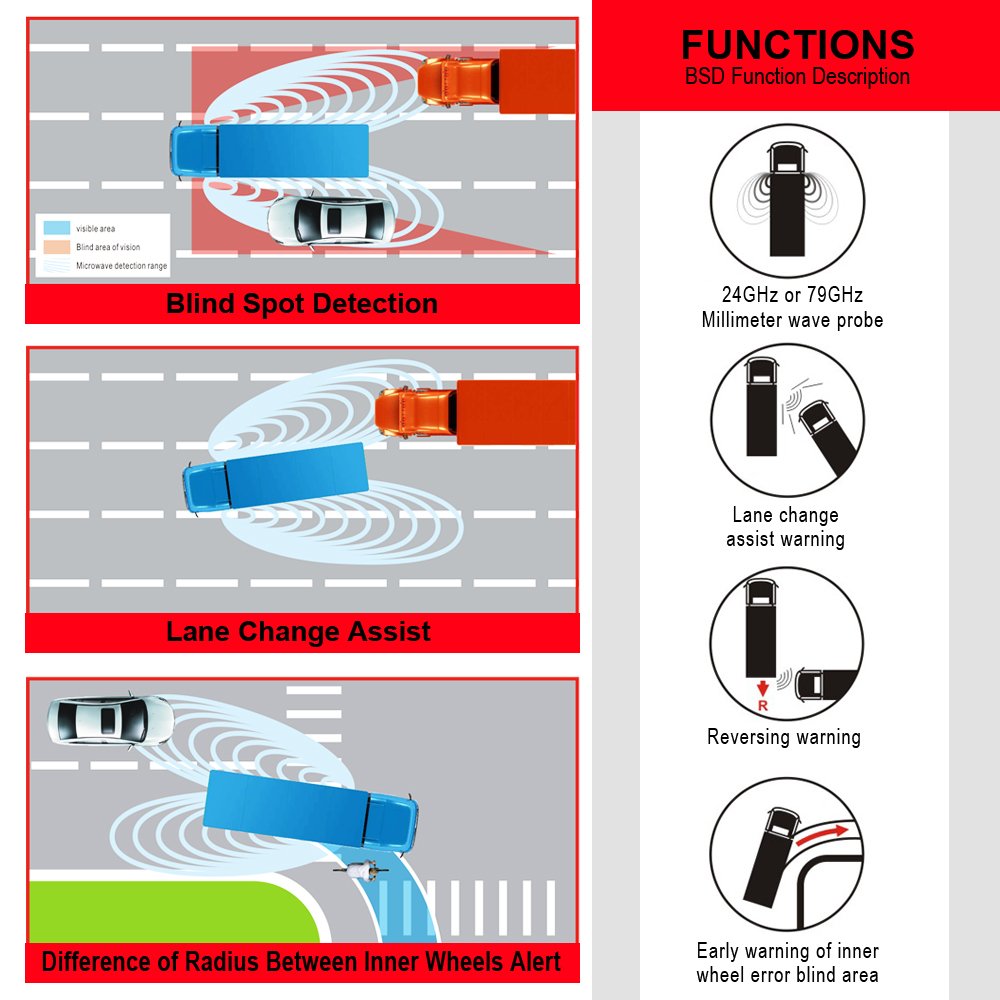

The LCA function, through the left 24ghz blind spot radar( 24ghz Blind spot sensor) and rigth  24ghz blind spot radar( 24ghz Blind spot sensor), when driving on the road, if any moving object closer to BSD, BSM, LCA area, the  24ghz blind spot radar( 24ghz Blind spot sensor) will detect the comming car then alarm the driver.

The RCTA function,  when reversing the car, through the left 24ghz blind spot radar( 24ghz Blind spot sensor) and rigth  24ghz blind spot radar( 24ghz Blind spot sensor) can detection the cross comming car near, then alarm the driver to attention it .




 this 24ghz blind spot detection system is also mean BSD,BSM,24ghz blind spot radar,24ghz Blind spot sensor,24ghz BSD system, this is the same function.

This 24ghz blind spot detection system is also can be used for LCA.



Features:

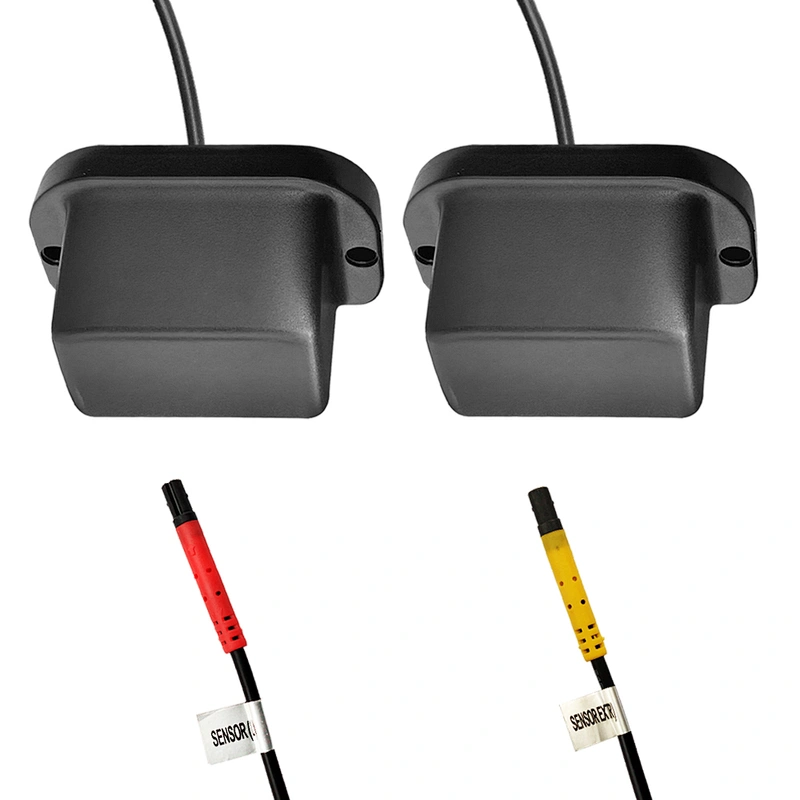

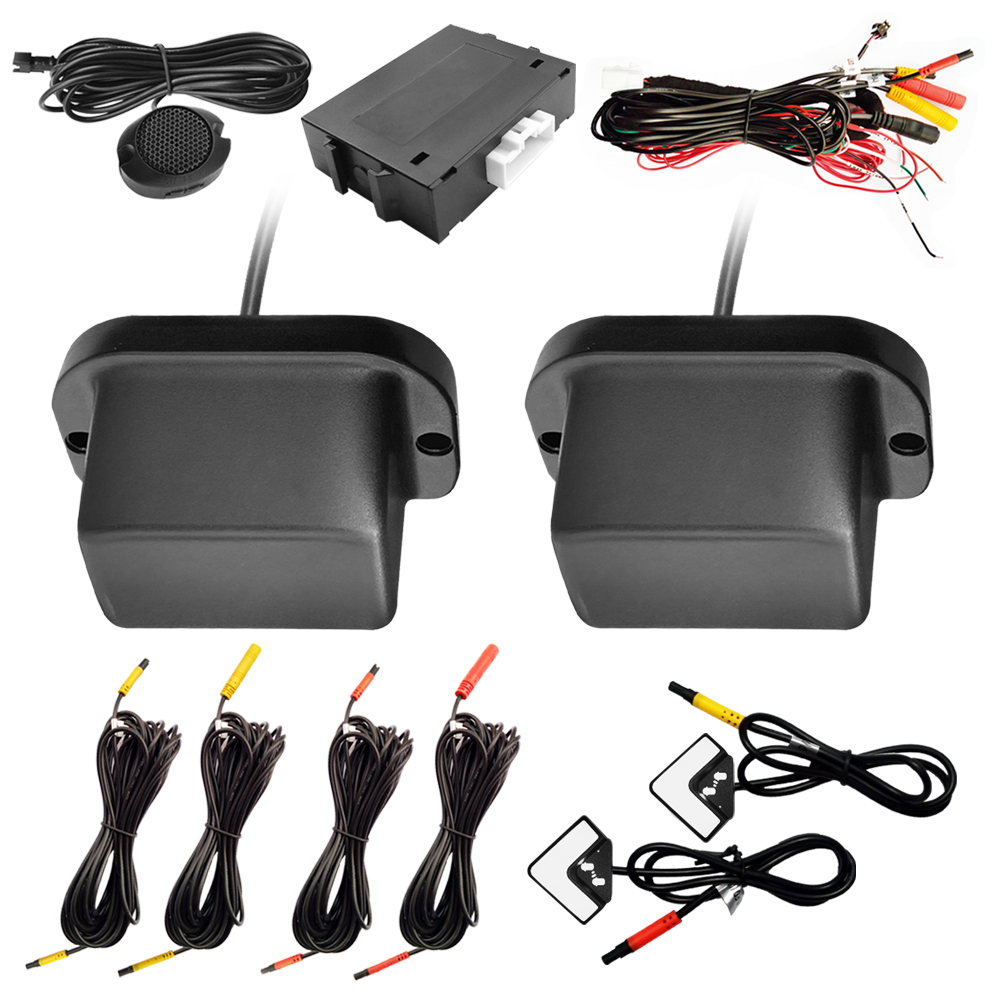

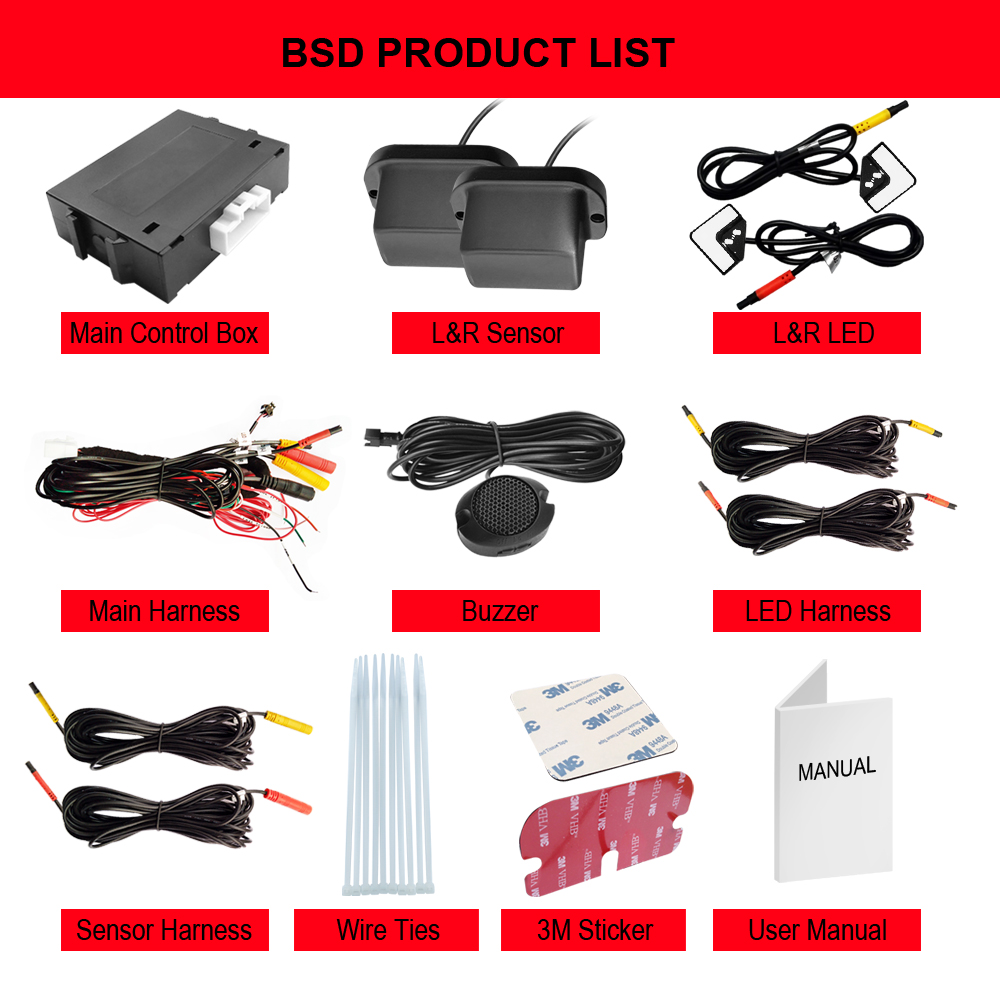

1, This blind spot detection system combine the 2pcs 24ghz Blind spot sensor, one buzzer and 2 indicate LEDs.
2,This blind spot detection system with  Wide voltage from DC 9V to 36v, it is easy to install on the vehicle, truck, SUV, MPV etc.
3, This blind spot detection system measure distance 0.3—15m for truck and 6m for human.
4,blind spot detection system, lane change decision aid system.
5, Led and buzzer alarm, collision warning.
6,When the speed over 0mph,the system will working.
7,Low power consumption, suitable for long-term power work.
8,All cable sockets have self-locking function. To avoid poor contact when the car vibration.
9,High quality and easy to install
10, Rated Current: 180mA
11,blind spot detection system Frequency: 24GHz
12,blind spot detection system radar sensor Angle: H<52degree, V<28degree
13.Operating temperature: -30 - 80 °C
